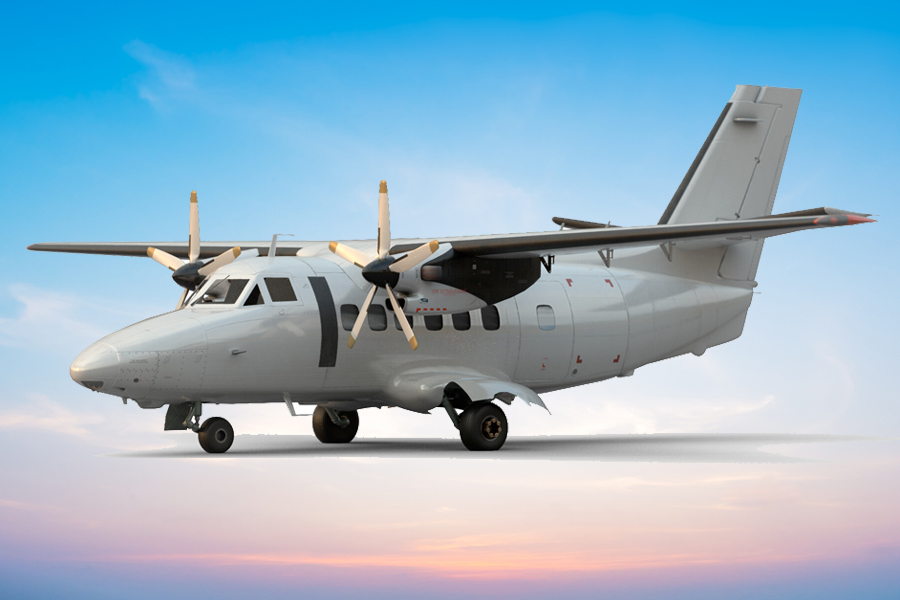

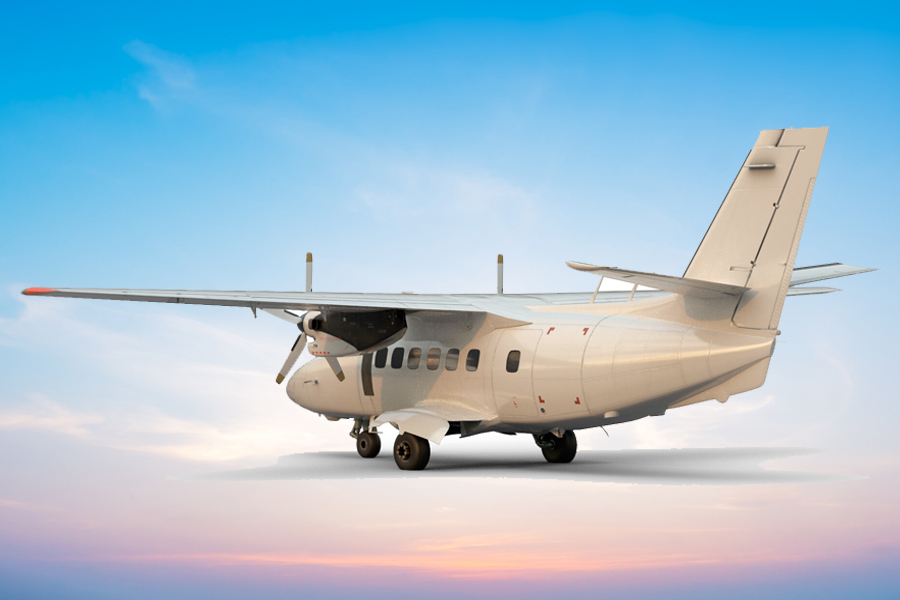

LET L-410 Turbolet

The L-410 was developed in eastern Europe in the 1960s. It is known for its very good STOL performance and a cheap operation price.

The L410 is a very successful Czech commuter aircraft which was first built in response to Soviet requirements, but has sold widely around the globe.

The first flight occurred on April 16, 1969 and series production began in 1970. The basic L-410 M or MA model was superseded from 1979 by the L-410 UVP with a 47cm (1ft 7in) fuselage stretch, M 601B engines and detail refinements.

The UVP was in turn replaced by the M 601E powered UVP-E in which the toilet and baggage compartments were repositioned allowing more efficient seating arrangements for up to 19 passengers. The UVP-E is the current production version.

Features

Crew 2

Passengers 15

Propulsion 2 Turboprop Engines

Engine Power (each) 515 kW 690 shp

alternative Engine Variant

Engine Model GE Aviation Czech H80-200

Engine Power (each) 597 kW 800 shp

max. Cruise Speed 356 (335) km/h 192 (181) kts 221 (208) mph

max. Speed (vne) 409 (400) km/h 221 (216) kts 254 (249) mph

Service Ceiling 4.200 (4.500) m 13.780 (14.764) ft

Range 550 (1.519) km 297 (820) NM342 (944) mi.

Empty Weight 3.800 (4.200) kg 8.378 (9.259) lbs

max. Takeoff Weight 5.800 (6.600) kg 12.787 (14.550) lbs

max. Landing Weight 5.500 (6.400) kg 12.125 (14.110) lbs

Wing Span 19,48 m 63 ft 11 in

Wing Area 35,2 m² 379 ft²

Length 14,47 m 47 ft 6 in

Height 5,83 m 19 ft 2 in
